Language models accurately infer correlations between psychological items and scales from text alone

Here, we apply the pre-trained model and our fine-tuned model to data not used for training, a holdout. The holdout sample was collected by Bainbridge et al. 2022.

knitr::opts_chunk$set(echo = TRUE, error = T, message = F, warning = F)

# Libraries and Settings

# Libs ---------------------------
library(knitr)
library(tidyverse)
library(arrow)
library(glue)
library(psych)
library(lavaan)
library(ggplot2)
library(plotly)
library(gridExtra)
library(broom)
library(broom.mixed)
library(brms)
library(tidybayes)
library(cmdstanr)
library(cowplot)

options(mc.cores = parallel::detectCores(),
        brms.backend = "cmdstanr",
        brms.file_refit = "on_change")


model_name = "ItemSimilarityTraining-20240502-trial12"
#model_name = "item-similarity-20231018-122504"
pretrained_model_name = "all-mpnet-base-v2"

data_path = glue("./")
pretrained_data_path = glue("./")

set.seed(42)


holdout <- arrow::read_feather(file = file.path(data_path, glue("ignore.{model_name}.raw.osf-bainbridge-2021-s2-0.item_correlations.feather")))

pt_holdout <- arrow::read_feather(file = file.path(data_path, glue("ignore.{pretrained_model_name}.raw.osf-bainbridge-2021-s2-0.item_correlations.feather")))

holdout_mapping_data = arrow::read_feather(
  file = file.path(data_path, glue("{model_name}.raw.osf-bainbridge-2021-s2-0.mapping2.feather"))
) %>%
  rename(scale_0 = scale0,
         scale_1 = scale1)

holdout_human_data = arrow::read_feather(
  file = file.path(data_path, glue("{model_name}.raw.osf-bainbridge-2021-s2-0.human.feather"))
)

holdout_scales <- arrow::read_feather(file.path(data_path, glue("{model_name}.raw.osf-bainbridge-2021-s2-0.scales.feather"))
)

N <- holdout_human_data %>% summarise_all(~ sum(!is.na(.))) %>% min()
total_N <- nrow(holdout_human_data)

The Bainbridge data was collected on N=493 respondents. The item with the most missing values still had n=480.

Synthetic inter-item correlations

holdout_llm <- holdout %>%
  left_join(holdout_mapping_data %>% select(variable_1 = variable, InstrumentA = instrument, ScaleA = scale_0, SubscaleA = scale_1)) %>%
  left_join(holdout_mapping_data %>% select(variable_2 = variable, InstrumentB = instrument, ScaleB = scale_0, SubscaleB = scale_1))

pt_holdout_llm <- pt_holdout %>%
  left_join(holdout_mapping_data %>% select(variable_1 = variable, InstrumentA = instrument, ScaleA = scale_0, SubscaleA = scale_1)) %>%
  left_join(holdout_mapping_data %>% select(variable_2 = variable, InstrumentB = instrument, ScaleB = scale_0, SubscaleB = scale_1))

Accuracy

se2 <- mean(holdout_llm$empirical_r_se^2)

r <- broom::tidy(cor.test(holdout_llm$empirical_r, holdout_llm$synthetic_r))
pt_r <- broom::tidy(cor.test(pt_holdout_llm$empirical_r, pt_holdout_llm$synthetic_r))

model <- paste0('
  # Latent variables
  PearsonLatent =~ 1*empirical_r

  # Fixing error variances based on known standard errors
  empirical_r ~~ ',se2,'*empirical_r

  # Relationship between latent variables
  PearsonLatent ~~ synthetic_r
')

fit <- sem(model, data = holdout_llm)
pt_fit <- sem(model, data = pt_holdout_llm)

m_synth_r_items <- brm(
  bf(empirical_r | mi(empirical_r_se) ~ synthetic_r + (1|mm(variable_1, variable_2)),
     sigma ~ poly(synthetic_r, degree = 3)), data = holdout_llm,
  file = "ignore/m_synth_r_items_lm")

sd_synth <- sd(m_synth_r_items$data$synthetic_r)

newdata <- m_synth_r_items$data %>% select(empirical_r, synthetic_r, empirical_r_se)
epreds <- epred_draws(newdata = newdata, obj = m_synth_r_items, re_formula = NA, ndraws = 200)
preds <- predicted_draws(newdata = newdata, obj = m_synth_r_items, re_formula = NA, ndraws = 200)
epred_preds <- epreds %>% left_join(preds)
by_draw <- epred_preds %>% group_by(.draw) %>%
  summarise(.epred = var(.epred),
            .prediction = var(.prediction),
            sigma = sqrt(.prediction - .epred),
            semi_latent_r = sqrt(.epred/.prediction))
rm(epred_preds)

accuracy_bayes_items <- by_draw %>% mean_hdci(semi_latent_r)

bind_rows(
  pt_r %>%
    mutate(model = "pre-trained", kind = "manifest") %>%
    select(model, kind, accuracy = estimate, conf.low, conf.high),
  standardizedsolution(pt_fit) %>%
    filter(lhs == "PearsonLatent", rhs ==  "synthetic_r") %>%
    mutate(model = "pre-trained", kind = "semi-latent (SEM)") %>%
    select(model, kind, accuracy = est.std,
           conf.low = ci.lower, conf.high = ci.upper),
  r %>%
    mutate(model = "fine-tuned", kind = "manifest") %>%
    select(model, kind, accuracy = estimate, conf.low, conf.high),
  standardizedsolution(fit) %>%
    filter(lhs == "PearsonLatent", rhs ==  "synthetic_r") %>%
    mutate(model = "fine-tuned", kind = "semi-latent (SEM)") %>%
    select(model, kind, accuracy = est.std,
           conf.low = ci.lower, conf.high = ci.upper),
  accuracy_bayes_items %>%
    mutate(model = "fine-tuned", kind = "semi-latent (Bayesian EIV)") %>%
    select(model, kind, accuracy = semi_latent_r, conf.low = .lower, conf.high = .upper)
  ) %>%
  knitr::kable(digits = 2)

model	kind	accuracy	conf.low	conf.high
pre-trained	manifest	0.19	0.18	0.19
pre-trained	semi-latent (SEM)	0.19	0.19	0.20
fine-tuned	manifest	0.67	0.67	0.68
fine-tuned	semi-latent (SEM)	0.70	0.70	0.70
fine-tuned	semi-latent (Bayesian EIV)	0.71	0.71	0.72

Prediction error plot according to synthetic estimate

m_synth_r_items

##  Family: gaussian
##   Links: mu = identity; sigma = log
## Formula: empirical_r | mi(empirical_r_se) ~ synthetic_r + (1 | mm(variable_1, variable_2))
##          sigma ~ poly(synthetic_r, degree = 3)
##    Data: holdout_llm (Number of observations: 87153)
##   Draws: 4 chains, each with iter = 2000; warmup = 1000; thin = 1;
##          total post-warmup draws = 4000
##
## Group-Level Effects:
## ~mmvariable_1variable_2 (Number of levels: 418)
##               Estimate Est.Error l-95% CI u-95% CI Rhat Bulk_ESS Tail_ESS
## sd(Intercept)     0.03      0.00     0.03     0.03 1.00     1359     2164
##
## Population-Level Effects:
##                                 Estimate Est.Error l-95% CI u-95% CI Rhat
## Intercept                          -0.01      0.00    -0.01    -0.00 1.00
## sigma_Intercept                    -2.20      0.00    -2.21    -2.20 1.00
## synthetic_r                         0.79      0.00     0.78     0.80 1.00
## sigma_polysynthetic_rdegreeEQ31    19.57      0.97    17.69    21.46 1.00
## sigma_polysynthetic_rdegreeEQ32    -0.50      0.81    -2.07     1.04 1.00
## sigma_polysynthetic_rdegreeEQ33    -4.86      0.79    -6.40    -3.32 1.00
##                                 Bulk_ESS Tail_ESS
## Intercept                           1175     1946
## sigma_Intercept                     4604     3177
## synthetic_r                         5015     2985
## sigma_polysynthetic_rdegreeEQ31     4931     3401
## sigma_polysynthetic_rdegreeEQ32     6335     3209
## sigma_polysynthetic_rdegreeEQ33     6573     3101
##
## Draws were sampled using sample(hmc). For each parameter, Bulk_ESS
## and Tail_ESS are effective sample size measures, and Rhat is the potential
## scale reduction factor on split chains (at convergence, Rhat = 1).

pred <- conditional_effects(m_synth_r_items, method = "predict")
by_draw %>% mean_hdci(sigma)

## # A tibble: 1 × 6
##   sigma .lower .upper .width .point .interval
##   <dbl>  <dbl>  <dbl>  <dbl> <chr>  <chr>
## 1 0.111  0.110  0.113   0.95 mean   hdci

plot(conditional_effects(m_synth_r_items, dpar = "sigma"), plot = F)[[1]] +
  theme_bw() +
  ylab("Prediction error (sigma)")

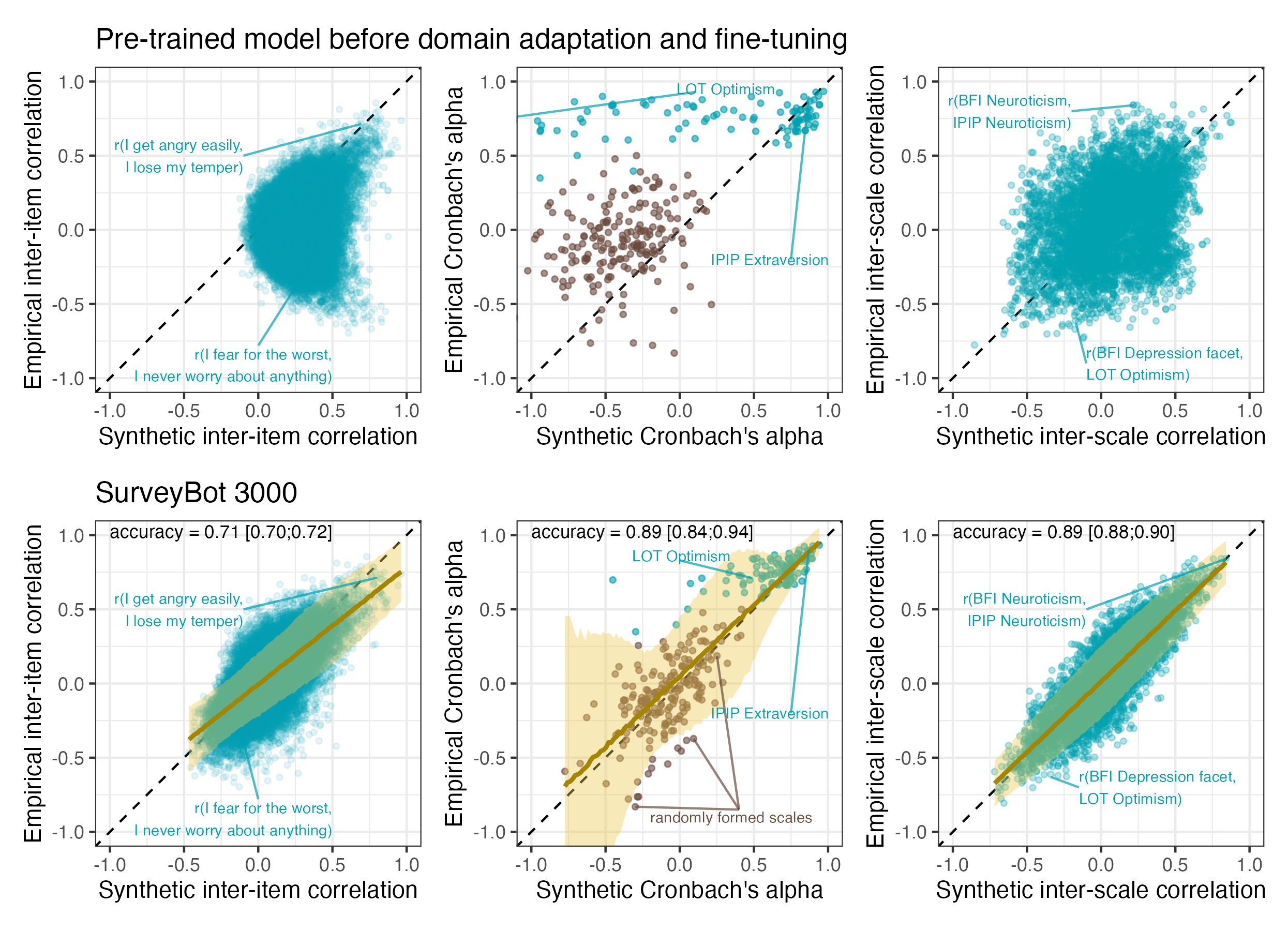

Scatter plot

ggplot(holdout_llm, aes(synthetic_r, empirical_r,
              ymin = empirical_r - empirical_r_se,
              ymax = empirical_r + empirical_r_se)) +
  geom_abline(linetype = "dashed") +
  geom_point(color = "#00A0B0", alpha = 0.1, size = 1) +
  geom_smooth(aes(
    x = synthetic_r,
    y = estimate__,
    ymin = lower__,
    ymax = upper__,
  ), stat = "identity",
  color = "#a48500",
  fill = "#EDC951",
  data = as.data.frame(pred$synthetic_r)) +
  xlab("Synthetic inter-item correlation") +
  ylab("Empirical inter-item correlation") +
  theme_bw() +
  coord_fixed(xlim = c(-1,1), ylim = c(-1,1)) -> plot_items
plot_items

Interactive plot

This plot shows only 2000 randomly selected item pairs to conserve memory. A full interactive plot exists, but may react slowly.

item_pair_table <- holdout_llm %>%
   left_join(holdout_mapping_data %>% select(variable_1 = variable,
                                             item_text_1 = item_text)) %>%
   left_join(holdout_mapping_data %>% select(variable_2 = variable,
                                             item_text_2 = item_text))

# item_pair_table %>% filter(str_length(item_text_1) < 30, str_length(item_text_2) < 30) %>%
#   left_join(pt_holdout_llm %>% rename(synthetic_r_pt = synthetic_r)) %>%
#   select(item_text_1, item_text_2, empirical_r, synthetic_r, synthetic_r_pt) %>% View()
rio::export(item_pair_table, "ignore/item_pair_table.feather")

(item_pair_table %>%
  mutate(synthetic_r = round(synthetic_r, 2),
         empirical_r = round(empirical_r, 2),
         items = str_replace_all(str_c(item_text_1, "\n", item_text_2),
                                  "_+", " ")) %>%
    sample_n(2000) %>%
ggplot(., aes(synthetic_r, empirical_r,
              # ymin = empirical_r - empirical_r_se,
              # ymax = empirical_r + empirical_r_se,
              label = items)) +
  geom_abline(linetype = "dashed") +
  geom_point(color = "#00A0B0", alpha = 0.3, size = 1) +
  xlab("Synthetic inter-item correlation") +
  ylab("Empirical inter-item correlation") +
  theme_bw() +
  coord_fixed(xlim = c(-1,1), ylim = c(-1,1))) %>%
  ggplotly()

item_pair_table <- item_pair_table %>%
  mutate(empirical_r = sprintf("%.2f±%.3f", empirical_r,
                                 empirical_r_se),
           synthetic_r = sprintf("%.2f", synthetic_r)) %>%
  select(item_text_1, item_text_2, empirical_r, synthetic_r)
rio::export(item_pair_table, "item_pair_table.xlsx")

Robustness checks

Is the accuracy lower within/across scales and instruments?

holdout_llm %>%
  mutate(same_instrument = if_else(InstrumentA == InstrumentB, 1, 0,0),
         same_scale = if_else(ScaleA == ScaleB, 1,0,0),
         same_subscale = if_else(same_scale & SubscaleA == SubscaleB, 1,0,0)) %>%
  group_by(same_scale, same_instrument, same_subscale) %>%
  summarise(broom::tidy(cor.test(synthetic_r, empirical_r)), sd_emp_r = sd(empirical_r), n = n()) %>%
  select(same_instrument, same_scale, same_subscale, r = estimate, conf.low, conf.high, n, sd_emp_r) %>%
  arrange(same_instrument, same_scale, same_subscale) %>%
  kable()

same_instrument	same_scale	same_subscale	r	conf.low	conf.high	n	sd_emp_r
0	0	0	0.6525977	0.6484796	0.6566776	75364	0.1537790
0	1	0	0.8269917	0.8095247	0.8429959	1376	0.2801202
0	1	1	0.8269181	0.7293619	0.8915144	64	0.4934840
1	0	0	0.6005392	0.5855629	0.6151056	7200	0.1365890
1	1	0	0.7571886	0.7404990	0.7729447	2662	0.2582187
1	1	1	0.8372433	0.8085383	0.8619731	487	0.3847884

Is the accuracy lower outside classic Big Five?

holdout_llm %>%
  mutate(big_five = case_when(
    str_detect(InstrumentA, "(Personality|Big Five)") & str_detect(InstrumentB, "(Personality|Big Five)") ~ "both",
    str_detect(InstrumentA, "(Personality|Big Five)") | str_detect(InstrumentB, "(Personality|Big Five)") ~ "either",
    TRUE ~ "none"
         )) %>%
  group_by(big_five) %>%
  summarise(broom::tidy(cor.test(synthetic_r, empirical_r)), sd_emp_r = sd(empirical_r), n = n()) %>%
  select(big_five, r = estimate, conf.low, conf.high, n, sd_emp_r) %>%
  arrange(big_five) %>%
  kable()

big_five	r	conf.low	conf.high	n	sd_emp_r
both	0.7105135	0.7027822	0.7180770	16110	0.1754473
either	0.6618969	0.6565425	0.6671846	42840	0.1525947
none	0.6653591	0.6588041	0.6718132	28203	0.1697589

Is the accuracy lower for items that have low variance?

item_variances <- holdout_human_data %>% summarise_all(~ sd(., na.rm = T)) %>%
  pivot_longer(everything(), names_to = "variable", values_to = "item_sd")

by_max_cov <- holdout_llm %>%
  left_join(item_variances, by = c("variable_1" = "variable")) %>%
  left_join(item_variances, by = c("variable_2" = "variable"), suffix = c("_1", "_2")) %>%
  mutate(max_covariance = ceiling((item_sd_1 * item_sd_2)*10)/10)

rs_by_max_cov <- by_max_cov %>%
  group_by(max_covariance) %>%
  filter(n() > 3) %>%
  summarise(broom::tidy(cor.test(synthetic_r, empirical_r)), sd_emp_r = sd(empirical_r), n = n()) %>%
  select(max_covariance, r = estimate, conf.low, conf.high, n, sd_emp_r) %>%
  arrange(max_covariance)

rs_by_max_cov%>%
  kable()

max_covariance	r	conf.low	conf.high	n	sd_emp_r
0.5	0.8845860	0.6925673	0.9595392	16	0.0841287
0.6	0.5394056	0.4566420	0.6129128	319	0.1712504
0.7	0.5773367	0.5485306	0.6047739	2162	0.1591129
0.8	0.6331256	0.6192313	0.6466235	7355	0.1524384
0.9	0.6439129	0.6346448	0.6529958	15639	0.1496275
1.0	0.6333785	0.6255374	0.6410916	22779	0.1536605
1.1	0.6791602	0.6718518	0.6863364	21261	0.1657358
1.2	0.7290679	0.7206660	0.7372557	12257	0.1799820
1.3	0.7435976	0.7298785	0.7567179	4268	0.1774902
1.4	0.7194644	0.6869514	0.7491027	930	0.1587180
1.5	0.7077049	0.6188080	0.7787043	154	0.1447413
1.6	0.8896940	0.6452603	0.9688857	12	0.1835193

rs_by_max_cov %>% ggplot(aes(max_covariance, r, ymin = conf.low, ymax = conf.high)) +
  geom_pointrange()

by_max_cov%>%
  filter(max_covariance > .7) %>%
  summarise(broom::tidy(cor.test(synthetic_r, empirical_r)), sd_emp_r = sd(empirical_r), n = n()) %>%
  kable()

estimate	statistic	p.value	parameter	conf.low	conf.high	method	alternative	sd_emp_r	n
0.6758603	266.806	0	84654	0.6721843	0.6795029	Pearson’s product-moment correlation	two.sided	0.1624048	84656

holdout_llm %>%
  left_join(item_variances, by = c("variable_1" = "variable")) %>%
  left_join(item_variances, by = c("variable_2" = "variable"), suffix = c("_1", "_2")) %>%
  mutate(max_covariance = ceiling((item_sd_1 * item_sd_2)*10)/10) %>%
  filter(max_covariance > 1) %>%
  summarise(broom::tidy(cor.test(synthetic_r, empirical_r)), sd_emp_r = sd(empirical_r), n = n()) %>%
  select(r = estimate, conf.low, conf.high, n, sd_emp_r) %>%
  knitr::kable()

r	conf.low	conf.high	n	sd_emp_r
0.7085118	0.7035267	0.7134273	38883	0.1726419

Is the accuracy lower for the pre-trained model?

ggplot(pt_holdout_llm, aes(synthetic_r, empirical_r,
              ymin = empirical_r - empirical_r_se,
              ymax = empirical_r + empirical_r_se)) +
  geom_abline(linetype = "dashed") +
  geom_point(color = "#00A0B0", alpha = 0.1, size = 1) +
  xlab("Synthetic inter-item correlation") +
  ylab("Empirical inter-item correlation") +
  theme_bw() +
  coord_fixed(xlim = c(-1,1), ylim = c(-1,1)) -> pt_plot_items
pt_plot_items

Full table of synthetic and empirical item pair correlations

Synthetic Reliabilities

cors_llm <- holdout_llm %>%
  select(x = variable_1, y = variable_2, r = synthetic_r) %>%
  as.data.frame() |>
  igraph::graph_from_data_frame(directed = FALSE) |>
  igraph::as_adjacency_matrix(attr = "r", sparse = FALSE)
diag(cors_llm) <- 1

pt_cors_llm <- pt_holdout_llm %>%
  select(x = variable_1, y = variable_2, r = synthetic_r) %>%
  as.data.frame() |>
  igraph::graph_from_data_frame(directed = FALSE) |>
  igraph::as_adjacency_matrix(attr = "r", sparse = FALSE)
diag(pt_cors_llm) <- 1

cors_real <- holdout_llm %>%
  select(x = variable_1, y = variable_2, r = empirical_r) %>%
  as.data.frame() |>
  igraph::graph_from_data_frame(directed = FALSE) |>
  igraph::as_adjacency_matrix(attr = "r", sparse = FALSE)
diag(cors_real) <- 1

mapping_data <- holdout_mapping_data
items_by_scale <- bind_rows(
  holdout_scales %>% filter(scale_1 == "") %>% left_join(mapping_data %>% select(-scale_1), by = c("instrument", "scale_0")),
  holdout_scales %>% filter(scale_1 != "") %>% left_join(mapping_data, by = c("instrument", "scale_0", "scale_1"))
)

scales <- items_by_scale %>%
  group_by(keyed, scale) %>%
  summarise(
    items = list(variable),
    number_of_items = n_distinct(variable),
    lvn = paste(first(scale), " =~ ", paste(variable, collapse = " + "))) %>%
  drop_na() %>%
  ungroup()


random_scales <- list()
for(i in 1:200) {
  n_items <- rpois(1, mean(scales$number_of_items))
  n_items <- if_else(n_items < 3, 3, n_items)
  random_scales[[i]] <- holdout_mapping_data %>%
    sample_n(n_items) %>%
    mutate(scale = paste0("random", i)) %>%
    group_by(scale) %>%
    summarise(
      items = list(variable),
      number_of_items = n_distinct(variable),
      lvn = paste(first(scale), " =~ ", paste(variable, collapse = " + "))) %>%
    drop_na() %>%
    mutate(keyed = 1)
}

random_scales <- bind_rows(random_scales)
scales <- bind_rows(scales, random_scales)

source("global_functions.R")

scales <- scales %>% filter(number_of_items >= 3)

scales <- scales %>%
  rowwise() %>%
  mutate(r_real = list(cors_real[items, items]),
         pt_r_llm = list(pt_cors_llm[items, items]),
         r_llm = list(cors_llm[items, items])) %>%
  mutate(reverse_items = list(find_reverse_items_by_first_item(r_real, keyed)),
         r_real_rev = list(reverse_items(r_real, reverse_items)),
         pt_r_llm_rev = list(reverse_items(pt_r_llm, reverse_items)),
         r_llm_rev = list(reverse_items(r_llm, reverse_items))) %>%
  mutate(
    rel_real = list(psych::alpha(r_real_rev, keys = F, n.obs = N)$feldt),
    rel_llm = list(psych::alpha(r_llm_rev, keys = F, n.obs = N)$feldt),
    rel_pt_llm = list(psych::alpha(pt_r_llm_rev, keys = F, n.obs = N)$feldt)) %>%
  mutate(empirical_alpha = rel_real$alpha$raw_alpha,
         synthetic_alpha = rel_llm$alpha$raw_alpha,
         pt_synthetic_alpha = rel_pt_llm$alpha$raw_alpha) %>%
  mutate(
    empirical_alpha_se = mean(diff(unlist(psychometric::alpha.CI(empirical_alpha, k = number_of_items, N = N, level = 0.95))))
  )

scales <- scales %>% filter(empirical_alpha > 0)
# qplot(scales$empirical_alpha_se)
# qplot(scales$empirical_alpha, scales$empirical_alpha_se)
# qplot(scales$number_of_items, scales$empirical_alpha_se)
# qplot(scales$empirical_alpha, scales$empirical_alpha_se, color = scales$number_of_items)

Accuracy

se2 <- mean(scales$empirical_alpha_se^2)
r <- broom::tidy(cor.test(scales$empirical_alpha, scales$synthetic_alpha))
pt_r <- broom::tidy(cor.test(scales$empirical_alpha, scales$pt_synthetic_alpha))

model <- paste0('
  # Latent variables
  latent_real_rel =~ 1*empirical_alpha

  # Fixing error variances based on known standard errors
  empirical_alpha ~~ ',se2,'*empirical_alpha

  # Relationship between latent variables
  latent_real_rel ~~ synthetic_alpha
')

fit <- sem(model, data = scales)
pt_fit <- sem(model, data = scales %>%
                select(empirical_alpha, synthetic_alpha = pt_synthetic_alpha))

m_lmsynth_rel_scales <- brm(
  bf(empirical_alpha | mi(empirical_alpha_se) ~ synthetic_alpha,
     sigma ~ poly(synthetic_alpha, degree = 3)), data = scales,
  file = "ignore/m_synth_rel_lm")

newdata <- m_lmsynth_rel_scales$data %>% select(empirical_alpha, synthetic_alpha, empirical_alpha_se)
epreds <- epred_draws(newdata = newdata, obj = m_lmsynth_rel_scales, re_formula = NA)
preds <- predicted_draws(newdata = newdata, obj = m_lmsynth_rel_scales, re_formula = NA)
epred_preds <- epreds %>% left_join(preds)
by_draw <- epred_preds %>% group_by(.draw) %>%
  summarise(.epred = var(.epred),
            .prediction = var(.prediction),
            sigma = sqrt(.prediction - .epred),
            semi_latent_r = sqrt(.epred/.prediction))

accuracy_bayes_rels <- by_draw %>% mean_hdci(semi_latent_r)

bind_rows(
  pt_r %>%
    mutate(model = "pre-trained", kind = "manifest") %>%
    select(model, kind, accuracy = estimate, conf.low, conf.high),
  standardizedsolution(pt_fit) %>%
    filter(lhs == "latent_real_rel", rhs ==  "synthetic_alpha") %>%
    mutate(model = "pre-trained", kind = "semi-latent (SEM)") %>%
    select(model, kind, accuracy = est.std,
           conf.low = ci.lower, conf.high = ci.upper),
  r %>%
    mutate(model = "fine-tuned", kind = "manifest") %>%
    select(model, kind, accuracy = estimate, conf.low, conf.high),
  standardizedsolution(fit) %>%
    filter(lhs == "latent_real_rel", rhs ==  "synthetic_alpha") %>%
    mutate(model = "fine-tuned", kind = "semi-latent (SEM)") %>%
    select(model, kind, accuracy = est.std,
           conf.low = ci.lower, conf.high = ci.upper),
  accuracy_bayes_rels %>%
    mutate(model = "fine-tuned", kind = "semi-latent (Bayesian EIV)") %>%
    select(model, kind, accuracy = semi_latent_r, conf.low = .lower, conf.high = .upper)
  ) %>%
  knitr::kable(digits = 2)

model	kind	accuracy	conf.low	conf.high
pre-trained	manifest	0.07	-0.04	0.18
pre-trained	semi-latent (SEM)	0.08	-0.04	0.19
fine-tuned	manifest	0.82	0.78	0.85
fine-tuned	semi-latent (SEM)	0.87	0.83	0.90
fine-tuned	semi-latent (Bayesian EIV)	0.86	0.75	0.95

Prediction error plot according to synthetic estimate

m_lmsynth_rel_scales

##  Family: gaussian
##   Links: mu = identity; sigma = log
## Formula: empirical_alpha | mi(empirical_alpha_se) ~ synthetic_alpha
##          sigma ~ poly(synthetic_alpha, degree = 3)
##    Data: scales (Number of observations: 303)
##   Draws: 4 chains, each with iter = 2000; warmup = 1000; thin = 1;
##          total post-warmup draws = 4000
##
## Population-Level Effects:
##                                     Estimate Est.Error l-95% CI u-95% CI Rhat
## Intercept                               0.25      0.01     0.22     0.28 1.00
## sigma_Intercept                        -2.35      0.06    -2.46    -2.24 1.00
## synthetic_alpha                         0.72      0.02     0.68     0.76 1.00
## sigma_polysynthetic_alphadegreeEQ31    -5.91      0.99    -7.78    -3.96 1.00
## sigma_polysynthetic_alphadegreeEQ32    -1.34      0.92    -3.09     0.53 1.00
## sigma_polysynthetic_alphadegreeEQ33    -2.81      0.83    -4.49    -1.24 1.00
##                                     Bulk_ESS Tail_ESS
## Intercept                               3860     3274
## sigma_Intercept                         2954     2904
## synthetic_alpha                         4019     3282
## sigma_polysynthetic_alphadegreeEQ31     3005     2850
## sigma_polysynthetic_alphadegreeEQ32     3919     3374
## sigma_polysynthetic_alphadegreeEQ33     4274     3355
##
## Draws were sampled using sample(hmc). For each parameter, Bulk_ESS
## and Tail_ESS are effective sample size measures, and Rhat is the potential
## scale reduction factor on split chains (at convergence, Rhat = 1).

pred <- conditional_effects(m_lmsynth_rel_scales, method = "predict")
by_draw %>%
  filter(!is.nan(sigma)) %>% mean_hdci(sigma)

## # A tibble: 1 × 6
##   sigma .lower .upper .width .point .interval
##   <dbl>  <dbl>  <dbl>  <dbl> <chr>  <chr>
## 1 0.116 0.0657  0.174   0.95 mean   hdci

plot(conditional_effects(m_lmsynth_rel_scales, dpar = "sigma"), plot = F)[[1]] +
  theme_bw() +
  scale_x_continuous(limits = c(0,1))+
  scale_y_continuous(limits = c(0,0.13)) +
  ylab("Prediction error (sigma)")

Scatter plot

ggplot(scales, aes(synthetic_alpha, empirical_alpha,
                   color = str_detect(scale, "^random"),
              ymin = empirical_alpha - empirical_alpha_se,
              ymax = empirical_alpha + empirical_alpha_se)) +
  geom_abline(linetype = "dashed") +
  geom_point(alpha = 0.6, size = 1) +
  geom_smooth(aes(
    x = synthetic_alpha,
    y = estimate__,
    ymin = lower__,
    ymax = upper__,
  ), stat = "identity",
  color = "#a48500",
  fill = "#EDC951",
  data = as.data.frame(pred$synthetic_alpha)) +
  scale_color_manual(values = c("#00A0B0", "#6A4A3C"),
                     guide = "none") +
  xlab("Synthetic Cronbach's alpha") +
  ylab("Empirical Cronbach's alpha") +
  theme_bw() +
  coord_fixed(xlim = c(0,1), ylim = c(0,1)) -> plot_rels
plot_rels

Interactive plot

(scales %>%
  filter(!str_detect(scale, "^random")) %>%
  mutate(synthetic_alpha = round(synthetic_alpha, 2),
         empirical_alpha = round(empirical_alpha, 2),
         scale = str_replace_all(scale, "_+", " ")) %>%
ggplot(., aes(synthetic_alpha, empirical_alpha,
              # ymin = empirical_r - empirical_r_se,
              # ymax = empirical_r + empirical_r_se,
              label = scale)) +
  geom_abline(linetype = "dashed") +
  geom_point(alpha = 0.3, size = 1, color = "#00A0B0") +
  xlab("Synthetic Cronbach's alpha") +
  ylab("Empirical Cronbach's alpha") +
  theme_bw() +
  theme(legend.position='none') +
  coord_fixed(xlim = c(NA,1), ylim = c(NA,1))) %>%
  ggplotly()

Table

scales %>%
  filter(!str_detect(scale, "^random")) %>%
  mutate(empirical_alpha = sprintf("%.2f±%.3f", empirical_alpha,
                               empirical_alpha_se),
         synthetic_alpha = sprintf("%.2f", synthetic_alpha),
         scale = str_replace_all(scale, "_+", " ")
         ) %>%
  select(scale, empirical_alpha, synthetic_alpha, number_of_items) %>%
  DT::datatable(rownames = FALSE,
                filter = "top")

Robustness checks

scales %>%
  group_by(str_detect(scale, "^random")) %>%
  summarise(broom::tidy(cor.test(synthetic_alpha, empirical_alpha)), sd_alpha = sd(empirical_alpha), n = n()) %>%
  knitr::kable()

str_detect(scale, “^random”)	estimate	statistic	p.value	parameter	conf.low	conf.high	method	alternative	sd_alpha	n
FALSE	0.6317914	8.351973	0	105	0.5021686	0.7336481	Pearson’s product-moment correlation	two.sided	0.0992460	107
TRUE	0.6932367	13.397440	0	194	0.6126040	0.7595885	Pearson’s product-moment correlation	two.sided	0.1594832	196

Although the number of items alone can of course predict Cronbach’s alpha, the synthetic alphas explain much more variance in empirical alphas.

scales %>%
  ungroup() %>%
  summarise(broom::tidy(cor.test(number_of_items, empirical_alpha)), sd_alpha = sd(empirical_alpha), n = n()) %>%
  knitr::kable()

estimate	statistic	p.value	parameter	conf.low	conf.high	method	alternative	sd_alpha	n
0.2366839	4.226398	3.15e-05	301	0.1274036	0.3402868	Pearson’s product-moment correlation	two.sided	0.2276686	303

summary(lm(empirical_alpha ~ number_of_items, scales))

##
## Call:
## lm(formula = empirical_alpha ~ number_of_items, data = scales)
##
## Residuals:
##      Min       1Q   Median       3Q      Max
## -0.47673 -0.16576 -0.01129  0.20063  0.45562
##
## Coefficients:
##                 Estimate Std. Error t value Pr(>|t|)
## (Intercept)     0.415447   0.025891  16.046  < 2e-16 ***
## number_of_items 0.014174   0.003354   4.226 3.15e-05 ***
## ---
## Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
##
## Residual standard error: 0.2216 on 301 degrees of freedom
## Multiple R-squared:  0.05602,    Adjusted R-squared:  0.05288
## F-statistic: 17.86 on 1 and 301 DF,  p-value: 3.152e-05

summary(lm(empirical_alpha ~ number_of_items + synthetic_alpha, scales))

##
## Call:
## lm(formula = empirical_alpha ~ number_of_items + synthetic_alpha,
##     data = scales)
##
## Residuals:
##      Min       1Q   Median       3Q      Max
## -0.39508 -0.07434 -0.00318  0.07120  0.76137
##
## Coefficients:
##                 Estimate Std. Error t value Pr(>|t|)
## (Intercept)     0.232096   0.017121  13.556   <2e-16 ***
## number_of_items 0.002904   0.002036   1.427    0.155
## synthetic_alpha 0.671944   0.028294  23.749   <2e-16 ***
## ---
## Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
##
## Residual standard error: 0.1308 on 300 degrees of freedom
## Multiple R-squared:  0.6722, Adjusted R-squared:   0.67
## F-statistic: 307.6 on 2 and 300 DF,  p-value: < 2.2e-16

Is the accuracy lower for the pre-trained model?

ggplot(scales, aes(pt_synthetic_alpha, empirical_alpha,
                   color = str_detect(scale, "^random"),
              ymin = empirical_alpha - empirical_alpha_se,
              ymax = empirical_alpha + empirical_alpha_se)) +
  geom_abline(linetype = "dashed") +
  geom_point(alpha = 0.6, size = 1) +
  scale_color_manual(values = c("#00A0B0", "#6A4A3C"),
                     guide = "none") +
  xlab("Synthetic Cronbach's alpha") +
  ylab("Empirical Cronbach's alpha") +
  theme_bw() +
  coord_fixed(xlim = c(0,1), ylim = c(0,1)) -> pt_plot_rels
pt_plot_rels

Synthetic Scale Correlations

manifest_scores = arrow::read_feather(file = file.path(data_path, glue("ignore.{model_name}.raw.osf-bainbridge-2021-s2-0.scale_correlations.feather")))
pt_manifest_scores = arrow::read_feather(file = file.path(data_path, glue("ignore.{pretrained_model_name}.raw.osf-bainbridge-2021-s2-0.scale_correlations.feather")))

n_distinct(manifest_scores$scale_a)

## [1] 112

manifest_scores <- manifest_scores %>%
 left_join(scales, by = c("scale_a" = "scale")) %>%
 left_join(scales, by = c("scale_b" = "scale"))

Accuracy

r <- broom::tidy(cor.test(manifest_scores$empirical_r, manifest_scores$synthetic_r))
pt_r <- broom::tidy(cor.test(pt_manifest_scores$empirical_r, pt_manifest_scores$synthetic_r))

se2 <- mean(manifest_scores$empirical_r_se^2)
model <- paste0('
    # Latent variables
    PearsonLatent =~ 1*empirical_r

    # Fixing error variances based on known standard errors
    empirical_r ~~ ',se2,'*empirical_r

    # Relationship between latent variables
    PearsonLatent ~~ synthetic_r
  ')

fit <- sem(model, data = manifest_scores)
pt_fit <- sem(model, data = pt_manifest_scores)


m_lmsynth_r_scales <- brm(
  bf(empirical_r | mi(empirical_r_se) ~ synthetic_r + (1|mm(scale_a, scale_b)),
     sigma ~ poly(synthetic_r, degree = 3)), data = manifest_scores,
  file = "ignore/m_synth_r_scales_lm8")

sd_synth <- sd(m_lmsynth_r_scales$data$synthetic_r)


newdata <- m_lmsynth_r_scales$data %>% select(empirical_r, synthetic_r, empirical_r_se)
epreds <- epred_draws(newdata = newdata, obj = m_lmsynth_r_scales, re_formula = NA)
preds <- predicted_draws(newdata = newdata, obj = m_lmsynth_r_scales, re_formula = NA)
epred_preds <- epreds %>% left_join(preds)
by_draw <- epred_preds %>% group_by(.draw) %>%
  summarise(.epred = var(.epred),
            .prediction = var(.prediction),
            sigma = sqrt(.prediction - .epred),
            semi_latent_r = sqrt(.epred/.prediction))

accuracy_bayes_scales <- by_draw %>% mean_hdci(semi_latent_r)

bind_rows(
  pt_r %>%
    mutate(model = "pre-trained", kind = "manifest") %>%
    select(model, kind, accuracy = estimate, conf.low, conf.high),
  standardizedsolution(pt_fit) %>%
    filter(lhs == "PearsonLatent", rhs ==  "synthetic_r") %>%
    mutate(model = "pre-trained", kind = "semi-latent (SEM)") %>%
    select(model, kind, accuracy = est.std,
           conf.low = ci.lower, conf.high = ci.upper),
  r %>%
    mutate(model = "fine-tuned", kind = "manifest") %>%
    select(model, kind, accuracy = estimate, conf.low, conf.high),
  standardizedsolution(fit) %>%
    filter(lhs == "PearsonLatent", rhs ==  "synthetic_r") %>%
    mutate(model = "fine-tuned", kind = "semi-latent (SEM)") %>%
    select(model, kind, accuracy = est.std,
           conf.low = ci.lower, conf.high = ci.upper),
  accuracy_bayes_scales %>%
    mutate(model = "fine-tuned", kind = "semi-latent (Bayesian EIV)") %>%
    select(model, kind, accuracy = semi_latent_r, conf.low = .lower, conf.high = .upper)
  ) %>%
  knitr::kable(digits = 2)

model	kind	accuracy	conf.low	conf.high
pre-trained	manifest	0.33	0.30	0.35
pre-trained	semi-latent (SEM)	0.33	0.31	0.35
fine-tuned	manifest	0.87	0.86	0.87
fine-tuned	semi-latent (SEM)	0.88	0.87	0.89
fine-tuned	semi-latent (Bayesian EIV)	0.89	0.88	0.90

Prediction error plot according to synthetic estimate

m_lmsynth_r_scales

##  Family: gaussian
##   Links: mu = identity; sigma = log
## Formula: empirical_r | mi(empirical_r_se) ~ synthetic_r + (1 | mm(scale_a, scale_b))
##          sigma ~ poly(synthetic_r, degree = 3)
##    Data: manifest_scores (Number of observations: 6245)
##   Draws: 4 chains, each with iter = 2000; warmup = 1000; thin = 1;
##          total post-warmup draws = 4000
##
## Group-Level Effects:
## ~mmscale_ascale_b (Number of levels: 113)
##               Estimate Est.Error l-95% CI u-95% CI Rhat Bulk_ESS Tail_ESS
## sd(Intercept)     0.07      0.01     0.06     0.08 1.00     1342     2191
##
## Population-Level Effects:
##                                 Estimate Est.Error l-95% CI u-95% CI Rhat
## Intercept                           0.01      0.01     0.00     0.03 1.01
## sigma_Intercept                    -2.15      0.01    -2.17    -2.13 1.00
## synthetic_r                         0.95      0.01     0.94     0.97 1.00
## sigma_polysynthetic_rdegreeEQ31    -0.06      1.04    -2.09     2.02 1.00
## sigma_polysynthetic_rdegreeEQ32    -6.00      0.85    -7.64    -4.29 1.00
## sigma_polysynthetic_rdegreeEQ33    -0.16      0.89    -1.87     1.58 1.00
##                                 Bulk_ESS Tail_ESS
## Intercept                            822     1443
## sigma_Intercept                     6041     2887
## synthetic_r                         6720     3387
## sigma_polysynthetic_rdegreeEQ31     3704     3465
## sigma_polysynthetic_rdegreeEQ32     5654     3555
## sigma_polysynthetic_rdegreeEQ33     5773     3703
##
## Draws were sampled using sample(hmc). For each parameter, Bulk_ESS
## and Tail_ESS are effective sample size measures, and Rhat is the potential
## scale reduction factor on split chains (at convergence, Rhat = 1).

by_draw %>% mean_hdci(sigma)

## # A tibble: 1 × 6
##   sigma .lower .upper .width .point .interval
##   <dbl>  <dbl>  <dbl>  <dbl> <chr>  <chr>
## 1 0.118  0.111  0.124   0.95 mean   hdci

pred <- conditional_effects(m_lmsynth_r_scales, method = "predict")
plot(conditional_effects(m_lmsynth_r_scales, dpar = "sigma"), plot = F)[[1]] +
  theme_bw() +
  ylab("Prediction error (sigma)")

Scatter plot

ggplot(manifest_scores, aes(synthetic_r, empirical_r,
              ymin = empirical_r - empirical_r_se,
              ymax = empirical_r + empirical_r_se)) +
  geom_abline(linetype = "dashed") +
  geom_point(color = "#00A0B0", alpha = 0.3, size = 1) +
  geom_smooth(aes(
    x = synthetic_r,
    y = estimate__,
    ymin = lower__,
    ymax = upper__,
  ), stat = "identity",
  color = "#a48500",
  fill = "#EDC951",
  data = as.data.frame(pred$synthetic_r)) +
  xlab("Synthetic inter-scale correlation") +
  ylab("Empirical inter-scale correlation") +
  theme_bw() +
  coord_fixed(xlim = c(-1,1), ylim = c(-1,1)) -> plot_scales
plot_scales

Interactive plot

(manifest_scores %>%
  mutate(synthetic_r = round(synthetic_r, 2),
         empirical_r = round(empirical_r, 2),
         scales = str_replace_all(str_c(scale_a, "\n", scale_b),
                                  "_+", " ")) %>%
ggplot(., aes(synthetic_r, empirical_r,
              # ymin = empirical_r - empirical_r_se,
              # ymax = empirical_r + empirical_r_se,
              label = scales)) +
  geom_abline(linetype = "dashed") +
  geom_point(color = "#00A0B0", alpha = 0.3, size = 1) +
  xlab("Synthetic inter-scale correlation") +
  ylab("Empirical inter-scale correlation") +
  theme_bw() +
  coord_fixed(xlim = c(-1,1), ylim = c(-1,1))) %>%
  ggplotly()

Table

manifest_scores %>%
                mutate(empirical_r = sprintf("%.2f±%.3f", empirical_r,
                                             empirical_r_se),
                       synthetic_r = sprintf("%.2f", synthetic_r),
                       scale_a = str_replace_all(scale_a, "_+", " "),
                       scale_b = str_replace_all(scale_b, "_+", " ")
                       ) %>%
                select(scale_a, scale_b, empirical_r, synthetic_r) %>%
  DT::datatable(rownames = FALSE,
                filter = "top")

Robustness checks

How does number of items across the two scales relate to accuracy?

by_item_number <- manifest_scores %>%
  mutate(items = number_of_items.x + number_of_items.y) %>%
  group_by(items) %>%
  summarise(broom::tidy(cor.test(empirical_r, synthetic_r)), pairwise_n = n())

by_item_number %>%
  ggplot(aes(items, estimate, ymin = conf.low, ymax = conf.high)) +
  geom_pointrange() +
  scale_y_continuous("Manifest accuracy (with 95% confidence interval)") +
  xlab("Number of items summed across scales")

lm(estimate ~ items, by_item_number, weights = 1/(by_item_number$conf.high-by_item_number$conf.low))

##
## Call:
## lm(formula = estimate ~ items, data = by_item_number, weights = 1/(by_item_number$conf.high -
##     by_item_number$conf.low))
##
## Coefficients:
## (Intercept)        items
##    0.845728     0.002668

manifest_scores %>%
  filter(number_of_items.x >= 10, number_of_items.y >= 10) %>%
  summarise(cor = cor(empirical_r, synthetic_r), n())

## # A tibble: 1 × 2
##     cor `n()`
##   <dbl> <int>
## 1 0.926   300

Is the accuracy lower for the pre-trained model?

ggplot(pt_manifest_scores, aes(synthetic_r, empirical_r,
              ymin = empirical_r - empirical_r_se,
              ymax = empirical_r + empirical_r_se)) +
  geom_abline(linetype = "dashed") +
  geom_point(color = "#00A0B0", alpha = 0.3, size = 1) +
  xlab("Synthetic inter-scale correlation") +
  ylab("Empirical inter-scale correlation") +
  theme_bw() +
  coord_fixed(xlim = c(-1,1), ylim = c(-1,1)) -> pt_plot_scales
pt_plot_scales

Combined plot

library(patchwork)
pt_plot_items2 <- pt_plot_items +
    annotate("text", size = 2.5, x = 0.5, y = -0.8, vjust = 1, hjust = 1, label = "r(I fear for the worst,\nI never worry about anything)", color = "#00A0B0") +
  annotate("segment", x = 0, y = -0.78, xend = 0.2761906, yend = -0.3459711, color = "#00A0B0", alpha = 0.7) +
  annotate("text", size = 2.5, x = -.1, y = 0.5, hjust = 1, label = "r(I get angry easily,\nI lose my temper)", color = "#00A0B0") +
  annotate("segment", x = -.1, y = 0.5, xend = 0.6935711, yend = 0.7140546, color = "#00A0B0", alpha = 0.7)


plot_items2 <- plot_items +
  annotate("text", size = 3, x = -1, y = 0.98, vjust = 0, hjust = 0, label = with(accuracy_bayes_items, { sprintf("accuracy = %.2f [%.2f;%.2f]", semi_latent_r, .lower, .upper) })) +
  annotate("text", size = 2.5, x = 0.5, y = -0.8, vjust = 1, hjust = 1, label = "r(I fear for the worst,\nI never worry about anything)", color = "#00A0B0") +
  annotate("segment", x = 0, y = -0.78, xend = -0.1104686, yend = -0.3459711, color = "#00A0B0", alpha = 0.7) +
  annotate("text", size = 2.5, x = -.1, y = 0.5, hjust = 1, label = "r(I get angry easily,\nI lose my temper)", color = "#00A0B0") +
  annotate("segment", x = -.1, y = 0.5, xend = 0.8031979, yend = 0.7140546, color = "#00A0B0", alpha = 0.7)
  # annotate("text", size = 2.5, x = -0.5, y = -0.8, hjust = 0, label = "r(I love life,\nI avoid crowds)", color = "#00A0B0") +
  # annotate("segment", x = -.3, y = -0.7, xend = -0.23, yend = -0.28, color = "#00A0B0", alpha = 0.7) +
  # annotate("text", size = 2.5, x = -.3, y = 0.5, hjust = 1, label = "r(I work hard,\nI am diligent)", color = "#00A0B0") +
  # annotate("segment", x = -.3, y = .5, xend = .52, yend = .58, color = "#00A0B0", alpha = 0.7)


pt_plot_rels2 <- pt_plot_rels +
  annotate("text", size = 2.5, x = 0.61, y = 0.25, hjust = 0, label = "IPIP Extraversion", color = "#00A0B0") +
  annotate("segment", x = 0.7, y = 0.27, xend = 0.9, yend = 0.90, color = "#00A0B0", alpha = 0.7) +
  annotate("text", size = 2.5, x = -0.02, y = 0.95, hjust = 0, label = "LOT Optimism", color = "#00A0B0") +
  annotate("segment", x = 0.11, y = 0.93, xend = -1.477226, yend = 0.71, color = "#00A0B0", alpha = 0.7)

plot_rels2 <- plot_rels +
  annotate("text", size = 3, x = 0, y = .985, vjust = 0, hjust = 0, label = with(accuracy_bayes_rels, { sprintf("accuracy = %.2f [%.2f;%.2f]", semi_latent_r, .lower, .upper) })) +
  annotate("text", size = 2.5, x = 0.4, y = 0.1, hjust = 0, label = "randomly formed scales", color = "#6A4A3C") +
  annotate("segment", x = 0.395, y = 0.1, xend = 0.39, yend = 0.4864297, color = "#6A4A3C", alpha = 0.7) +
  annotate("segment", x = 0.395, y = 0.1, xend = 0.285, yend = 0.2279919, color = "#6A4A3C", alpha = 0.7) +
  annotate("segment", x = 0.395, y = 0.1, xend = 0.2, yend = 0.075, color = "#6A4A3C", alpha = 0.7) +
  annotate("text", size = 2.5, x = 0.61, y = 0.4, hjust = 0, label = "IPIP Extraversion", color = "#00A0B0") +
  annotate("segment", x = 0.75, y = 0.42, xend = 0.87, yend = 0.90, color = "#00A0B0", alpha = 0.7) +
  annotate("text", size = 2.5, x = -0.02, y = 0.86, hjust = 0, label = "LOT Optimism", color = "#00A0B0") +
  annotate("segment", x = 0.11, y = 0.83, xend = 0.15, yend = 0.71, color = "#00A0B0", alpha = 0.7)

pt_plot_scales2 <- pt_plot_scales +
  annotate("text", size = 2.5, x = -0.2, y = 0.8, hjust = 1, label = "r(BFI Neuroticism,\nIPIP Neuroticism)", color = "#00A0B0") +
  annotate("segment", x = -.2, y = 0.8, xend = 0.22, yend = .84, color = "#00A0B0", alpha = 0.7) +
  annotate("text", size = 2.5, x = -.1, y = -0.9, hjust = 0, label = "r(BFI Depression facet,\nLOT Optimism)", color = "#00A0B0") +
  annotate("segment", x = -.1, y = -.9, xend = -0.17, yend = -.63, color = "#00A0B0", alpha = 0.7)


plot_scales2 <- plot_scales +
  annotate("text", size = 3, x = -1, y = 0.98, vjust = 0, hjust = 0, label = with(accuracy_bayes_scales, { sprintf("accuracy = %.2f [%.2f;%.2f]", semi_latent_r, .lower, .upper) })) +
  annotate("text", size = 2.5, x = -0.1, y = 0.5, hjust = 1, label = "r(BFI Neuroticism,\nIPIP Neuroticism)", color = "#00A0B0") +
  annotate("segment", x = -.1, y = 0.5, xend = .84, yend = .84, color = "#00A0B0", alpha = 0.7) +
  annotate("text", size = 2.5, x = -.15, y = -0.7, hjust = 0, label = "r(BFI Depression facet,\nLOT Optimism)", color = "#00A0B0") +
  annotate("segment", x = -.15, y = -.7, xend = -.34, yend = -.63, color = "#00A0B0", alpha = 0.7)


(pt_plot_items2+
    pt_plot_rels2 + ggtitle("") +
    pt_plot_scales2) /


(plot_items2 +
    plot_rels2 + ggtitle("SurveyBot 3000")  +
    plot_scales2) +
  plot_annotation(
  title = 'Pre-trained model before domain adaptation and fine-tuning'
)

ggsave("ignore/Figure_pilot.pdf", width = 8.3, height = 6, device = grDevices::cairo_pdf)
ggsave("ignore/Figure_pilot.png", width = 8.3, height = 6)



# ggsave("ignore/Figure_pilot.svg", width = 8.3, height = 5.5, device = svglite::svglite)
